How Much Workspace Does a CNC Machine Need?
Share
A CNC machine can fit through the door and still be the wrong fit for the room. The real question is not only how much workspace does a CNC machine need, but how much space your complete workflow needs: loading material, securing workpieces, managing dust, making adjustments, and moving safely around the machine.
For a home maker, a compact desktop CNC may operate comfortably from a dedicated bench. For a school lab, sign shop, or production-focused studio, the same machine footprint can become restrictive once full sheets, dust collection, tool storage, and multiple users enter the picture. Planning the space before the machine arrives protects your investment and gives your work the precision, purpose, and consistency it deserves.
Start With the CNC Machine Footprint
Every CNC has published exterior dimensions, often listed as length, width, and height. Treat those dimensions as the beginning of your layout, not the final answer. A machine with a 48-by-48-inch cutting area, for example, may have an overall frame closer to 65 by 70 inches once gantry supports, electronics, and cable routing are included.
Desktop CNC routers commonly occupy about 2 by 3 feet of bench space, while mid-size machines may need a 4-by-6-foot or 5-by-8-foot footprint. Full-sheet CNC routers can easily require an 8-by-12-foot equipment zone before any operating clearance is considered. Always use the manufacturer’s actual machine dimensions, including stands, control boxes, and any required enclosure, rather than estimating from the advertised cutting area.
Height matters too. Most routers do not need much vertical clearance during cutting, but access to the gantry, spindle, dust hose, and overhead cable management does. If your space has low ceilings, shelves directly above the machine, or garage-door tracks, measure them before selecting a tall machine or enclosure.
How Much Workspace Does a CNC Machine Need Beyond Its Footprint?

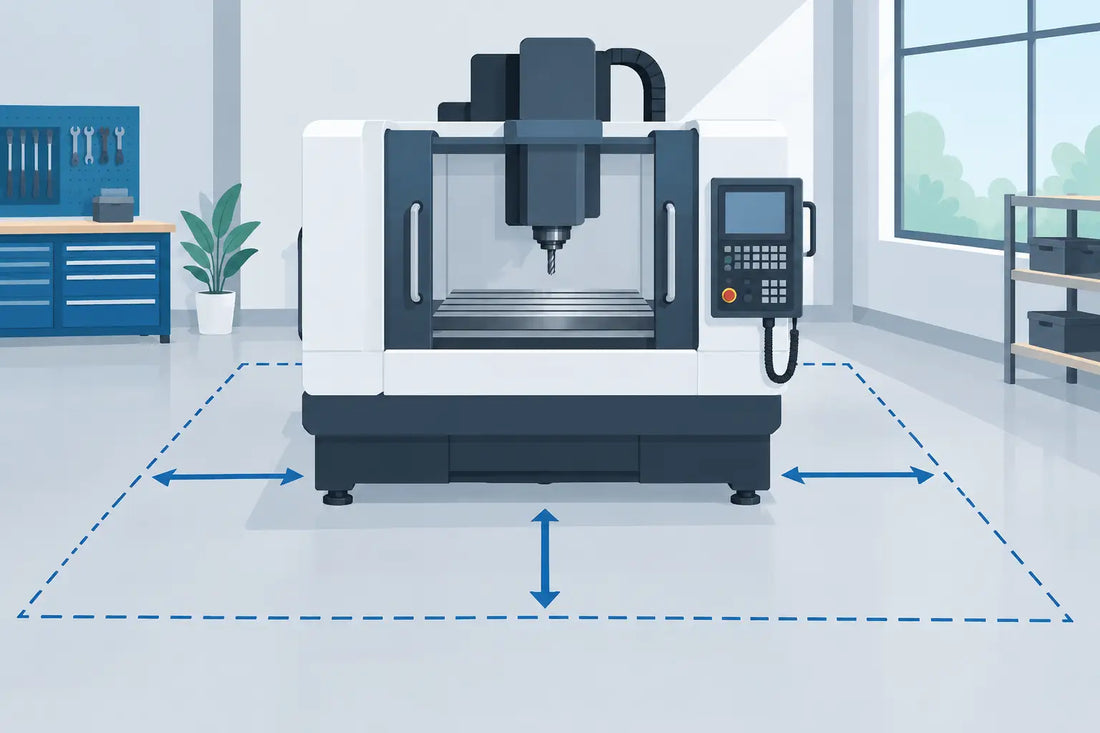

A practical rule is to allow at least 3 feet of clear walking and operating space around the sides you will use regularly. This gives you room to inspect cuts, reach clamps, change tools, and step away from moving equipment. More clearance is better around the front and sides of a machine where material is loaded.
The required workspace increases most dramatically with the length of your stock. A CNC that cuts a 4-by-8-foot plywood sheet needs room not just for the router table, but for you to bring that sheet in, position it, and remove finished parts without striking walls, benches, or another machine. In a tight shop, material handling can be more limiting than the CNC itself.
For a typical 4-by-8 CNC router, plan for a room or dedicated zone of roughly 12 by 16 feet at minimum. That can work for a disciplined one-person workflow using vertical sheet storage and careful layout. A more comfortable setup is closer to 14 by 20 feet, particularly if you want a rolling assembly table, a dust collector, or a helper assisting with sheet goods.
Smaller machines offer more flexibility, but they still deserve intentional space. A desktop unit on a 30-by-60-inch workbench may need a 6-by-8-foot working area once you account for the operator, a computer, tooling, and access to the rear of the bench. Avoid placing it where you must reach over the machine or squeeze between the router and a wall to perform routine maintenance.
Plan for the Five Spaces Around the Machine
A CNC workspace works best when it is designed as a connected production area rather than an isolated machine pad. Consider these five zones before deciding a machine will fit:
- Machine access: Space to load stock, reach clamps and hold-down hardware, and service the spindle, belts, or linear components.
- Material staging: A clear location for raw lumber, panels, acrylic, foam, or other stock before it enters the machine.
- Finished-part handling: Room to remove cut pieces, label them, sand tabs, and keep them protected from damage.
- Tooling and controls: A nearby cabinet or wall area for bits, collets, measuring tools, safety gear, and the control computer.
- Dust collection: Floor space and routing for a collector, hose, separator, or shop vacuum without creating trip hazards.
Do Not Forget Material Infeed and Outfeed
Material movement is one of the most common workspace planning mistakes. If a CNC can machine long boards, you need open space at the front and rear for those boards to travel. A machine may be only 4 feet deep, but an 8-foot board requires an 8-foot path to load comfortably.
For sheet-based routers, think about how panels will enter the shop. Can a 4-by-8-foot sheet make the turn from the exterior door to the CNC? Will it clear a hallway, stairwell, or parked vehicle? A compact CNC placed in an otherwise perfect basement can become impractical if every material sheet must be cut down elsewhere first.
Vertical panel racks can reduce the floor area required for sheet storage, but they need safe access and a stable location. Store stock close enough to the CNC to reduce carrying distance, while keeping it outside the machine’s operating envelope. A sheet leaning where you need to stand during a tool change is not a space-saving solution.
Dust Collection Needs Its Own Plan
CNC routing produces fine dust quickly, especially when cutting MDF, hardwood, plywood, and composites. A dust shoe connected to a shop vacuum may be sufficient for occasional desktop work, while a larger router used frequently usually benefits from a dedicated dust collector and separator.
Reserve space for the collection unit, hose runs, and waste disposal. A collector should remain accessible for emptying and filter service, not trapped behind the CNC. Keep hoses off walkways whenever possible. Overhead routing can preserve floor space, but it must have enough slack to follow the gantry through its full range of motion without pulling, snagging, or dragging across the workpiece.
Ventilation also affects the layout. If your work includes plastics, composites, or materials that create odors, consider where air will circulate and what filtration is appropriate for the material and machine. Never treat dust control as an accessory decision after the room is already full.
Electrical, Computer, and Safety Clearance
Your CNC needs more than an outlet nearby. Confirm the machine’s voltage and amperage requirements, then plan a dedicated circuit when the manufacturer recommends one. Large routers, vacuum hold-down systems, and dust collectors can place significant demand on a shop’s electrical system. Avoid extension cords stretched across walking paths or routed where rolling material can damage them.
Place the controller and computer where they are protected from chips and dust but still visible during operation. You should be able to access the emergency stop immediately and observe the cutting process without standing in a pinch point. In shared environments, maintain open aisles and establish a clear boundary that keeps bystanders away from moving equipment.
A fire extinguisher, hearing protection, eye protection, and cleaning tools should have a known home within the workspace. That level of organization is not excessive. It is what lets makers work with confidence instead of improvising around preventable hazards.
Sample CNC Workspace Sizes
A small desktop CNC used for engraving, circuit boards, small signs, and detailed prototypes can often live in an 8-by-10-foot corner with a sturdy bench and basic dust control. This is a practical option for a home studio, classroom design station, or small personalization business.
A mid-size CNC that handles cabinet components, furniture parts, or larger signage is more comfortable in a 10-by-14-foot area. That size leaves room for material staging, a mobile cart, and operator access without turning every setup into a rearranging project.
For a 4-by-8 router, 12 by 16 feet is a workable minimum, while 14 by 20 feet supports a more efficient workflow. If you regularly process full sheets, add assembly tables, employ more than one operator, or pair the router with a large dust collector, plan beyond that baseline.
Choose the Machine That Fits the Work You Want to Build
The biggest CNC is not automatically the best choice. A smaller machine with reliable access, strong dust collection, and a well-organized workbench can produce exceptional work. Conversely, a full-sheet router may be the right decision when your business depends on cabinetry, production signage, nested parts, or consistent processing of large panels.
Think one project ahead. Consider the largest material you expect to cut, how often you will run the machine, and whether your workflow may grow from weekend projects to paid production. A thoughtful workspace gives your CNC room to perform and gives your ideas room to become finished work. If you are weighing machine size against available shop space, the equipment specialists at LuxFab Systems can help you build with precision and choose with confidence.
