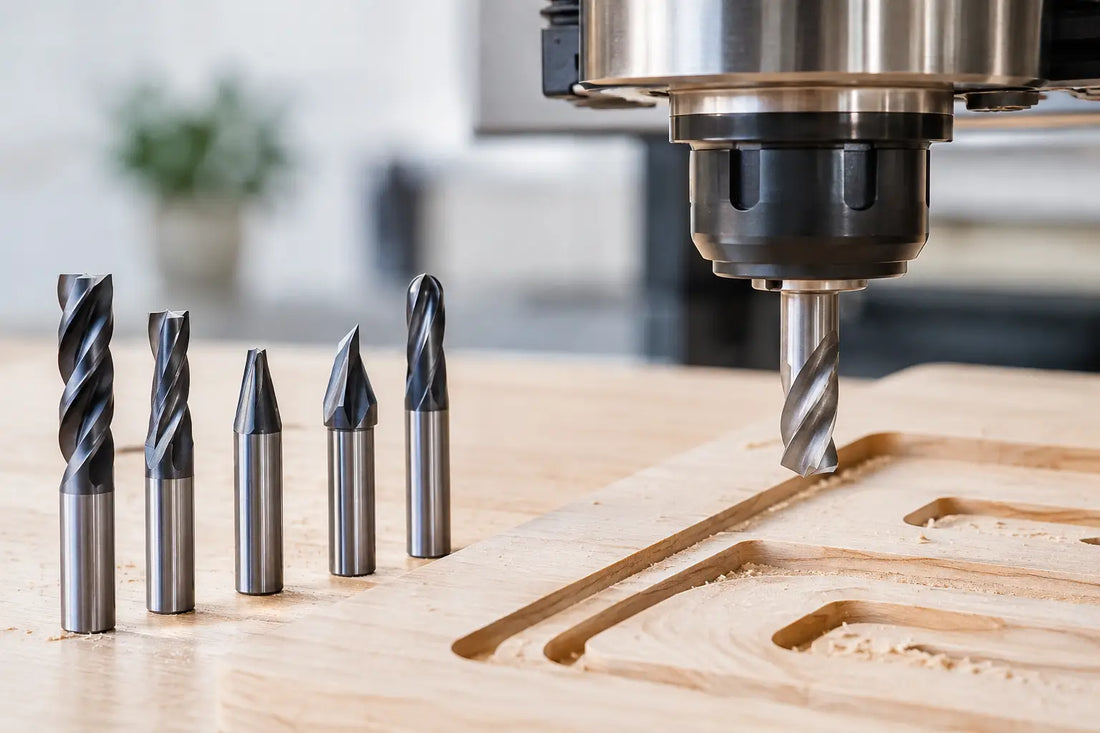

CNC Router Bits for Cleaner, Smarter Cuts

A CNC router can hold position within fractions of an inch, but the finished edge still comes down to the cutting tool. The right CNC router bits turn a digital design into crisp lettering, smooth pockets, accurate joinery, and parts ready for assembly. The wrong bit can leave fuzzed veneer, burned edges, chipped laminate, or a job that takes far longer than it should.

For makers, educators, and production-minded shops, bit selection is not an accessory decision. It is part of the machining strategy. Material, geometry, shank size, cutting direction, and toolpath all work together. Once those relationships are clear, you can build with more precision, more confidence, and far less trial-and-error.

Start With the Material, Not the Shape

A bit profile matters, but the workpiece should make the first decision. Soft pine, hardwood, plywood, MDF, acrylic, aluminum, and composite panels respond differently under a rotating cutter. A bit that produces an excellent finish in hardwood may melt acrylic if the chip load is too low. One that clears MDF efficiently may tear the top veneer of plywood.

For most wood and sheet-good projects, solid carbide is the standard worth choosing. Carbide stays sharp longer than high-speed steel, handles heat well, and delivers consistent results across repeated jobs. High-speed steel can work for occasional light cuts, but it loses its edge sooner and is less compelling when reliability matters.

Coatings are useful when they solve a specific problem. A polished flute helps prevent plastic from sticking to the tool. Specialty coatings can improve performance in abrasive materials, aluminum, or composites. They are not a substitute for correct feeds and speeds, though. If a bit is burning wood or welding chips to acrylic, revisit the cutting settings before assuming a coating will fix it.

CNC Router Bit Profiles and Their Real Jobs

A small, intentional set of bits can cover a remarkable range of work. Rather than collecting every profile available, choose cutters that match the kinds of products, prototypes, lessons, or production parts you plan to make.

Straight and spiral bits

Straight bits have simple, straight cutting edges and are commonly used for grooves, dados, and general routing. They are economical and capable, especially in solid wood, but they do not evacuate chips as effectively as spiral designs.

Spiral bits use helical flutes to lift or push chips as they cut. They are often the better choice for CNC work because their cutting action is smoother, chip evacuation is more controlled, and finish quality is typically stronger. The trade-off is that cutting direction affects the faces of the material differently.

An upcut spiral pulls chips upward. It clears deep pockets well and generally leaves a clean bottom edge, making it useful for pocketing and through-cuts where the underside matters most. Its upward pull can fray the top face of plywood or veneer.

A downcut spiral presses fibers downward. It produces a cleaner top surface, which is valuable for finished plywood signs, veneered panels, and engraved work. However, chips are pushed into the cut, so deep slots require thoughtful stepdowns and dust collection.

A compression bit combines both directions: downcut geometry near the tip and upcut geometry above it. On full-depth plywood cuts, it can protect both faces from tear-out. It is a powerful option for cabinet parts, signage, and production panels, but it needs enough cutting depth for the upcut section to engage correctly. Using a compression bit in a shallow pass can produce the very tear-out it was meant to prevent.

End mills for detail and shaping

Flat end mills create flat-bottomed pockets, slots, contours, and cutouts. They are the dependable workhorses of CNC routing. Larger diameters remove material faster and resist deflection, while smaller diameters reach tight corners and fine interior features.

Ball nose bits have rounded tips that create smooth 3D contours. Use them for relief carvings, molds, sculpted terrain, and decorative surfaces. They are usually a finishing tool rather than a roughing tool. A larger ball nose can cover broad curves efficiently; a smaller one captures finer detail but substantially increases machining time.

Tapered ball nose bits add strength behind a small rounded tip. They are especially useful for detailed relief work because the taper reduces flex compared with a straight, fine-diameter tool. They cannot reach every vertical wall, so use them where the design and toolpath suit their angled shape.

V-bits and specialty profiles

V-bits create engraved lettering, line art, chamfers, and decorative inlays. Their angle determines how wide a cut becomes at a given depth. A 60-degree V-bit is versatile for signs and general engraving, while a 90-degree bit creates broader, more open details. Fine angles can produce delicate lettering, but the narrow tip is more vulnerable to breakage and demands accurate machine setup.

Specialty bits such as round-over, bowl, keyhole, and surfacing cutters have focused roles. A surfacing bit is particularly valuable when flattening a spoilboard or preparing a warped workpiece. It can restore a level reference surface, which improves through-cut consistency across the entire bed.

Diameter, Shank Size, and Machine Limits

The smallest bit is not automatically the most precise choice. Small diameters allow tight radii and detailed geometry, but they are more prone to deflection and breakage. Larger tools cut more rigidly, remove material more quickly, and often leave cleaner edges on broad contours.

Use the largest diameter that can physically create the features in your design. If an inside corner needs a 1/8-inch radius, a 1/4-inch bit cannot produce it without a design adjustment such as a dogbone fillet. That is not a failure of the machine. It is a useful moment to design for manufacturing.

Shank size matters just as much. A 1/4-inch shank is generally stiffer and better suited to demanding cuts than a 1/8-inch shank. Your router or spindle collet sets the limit, so confirm compatibility before buying. A quality collet, clean seating surfaces, and full shank engagement help reduce runout, vibration, and premature bit wear.

Set Feeds and Speeds to Make Chips, Not Dust

Clean machining is partly about heat management. A cutter needs to take a meaningful chip with each cutting edge. If the feed rate is too slow for the spindle speed, the tool rubs instead of cuts. In wood, that often shows up as burning. In acrylic, it can create melted edges and chips that stick to the flutes.

If the feed rate is too fast, the machine may chatter, lose steps, break the bit, or leave a rough edge. The correct settings depend on bit diameter, flute count, material, machine rigidity, hold-down method, and depth of cut. There is no single feed-and-speed chart that replaces observation.

Start conservatively with the tool manufacturer’s guidance, then inspect the chips and the cut. Warm, distinct chips are generally preferable to fine dust or long, stringy melted plastic. Listen as well. A steady cutting sound is different from the high-pitched squeal of rubbing or the harsh chatter of an overloaded tool.

For difficult materials, use multiple shallow passes rather than forcing one aggressive cut. This is especially relevant for small-diameter bits, hardwoods, plastics, and machines with lighter gantries. More passes may take longer, but preserving finish quality and avoiding a broken tool often saves the job.

Protect the Workpiece With the Right Cutting Strategy

A bit cannot compensate for poor workholding. If material shifts even slightly, accuracy disappears and the cutter can break. Use clamps, screws in sacrificial areas, tape-and-CA-glue methods, vacuum hold-down, or a fixture designed for repeatable positioning. Keep clamps clear of the toolpath and simulate the job before pressing start.

Leave a small onion skin on through-cuts when thin parts might move at the end of the job. The final pass can release the parts cleanly after the main material removal is complete. Tabs are another effective option, particularly for larger parts, though they require cleanup afterward.

For finished panels, consider a roughing pass followed by a light finishing pass. The roughing pass removes most material efficiently. The finishing pass takes only a small amount from the edge, reducing tool pressure and improving surface quality. This two-step approach is especially valuable for hardwood, plywood signage, and components that need a professional fit.

Care Extends Bit Life and Protects Precision

Resin, adhesive residue, and melted plastic increase friction. Clean bits regularly with an appropriate cutter cleaner and a soft brush, then dry them completely. Avoid scraping sharp edges with hard metal tools. Store bits separately so their cutting edges do not knock together in a drawer.

Replace a bit when cleaning no longer restores cut quality, when edges begin to burn despite sound settings, or when you see chipping on the cutting edge. A dull tool can quietly compromise an entire batch of work. For schools and shared makerspaces, labeling bits by material and profile also helps users make smarter choices before a job begins.

The next time a design calls for a cutout, pocket, engraving pass, or 3D surface, choose the cutter with the final surface in mind. That small decision gives your machine a clearer purpose and gives your work the finish it deserves.
